We have been selling the Motorcycle Diagnostic Scan Tool for some time now. Due to the success of that product and requests from our customers, we have put together a full line of Motorcycle Repair Shop Equipment. |
|

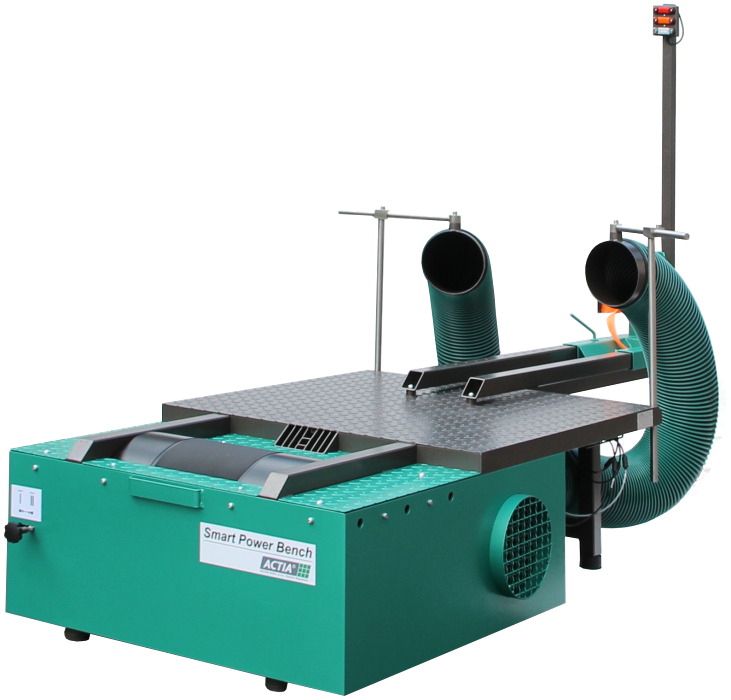

SMART POWER BENCH for MOTORCYCLES (SPB) MS531-4094 (Motorcycle Dyno & Test Bench) |
|
To contact us: |
|
Phone: (847) 651-3099 Fax: (914) 612-8945 E-Mail: rgriffin@griffintoolsandsupply.com Home | Current Specials | New Products | Contact Us | Sitemap |
|

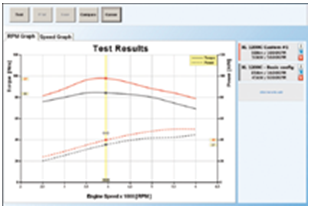

SMART POWER BENCH (SPB-2) Motorcycle Dyno Power bench for bike diagnostics and tuning √ Simulates engine load equivalent to road test • Gear 1 √ Simulates double load for comfortable tuning measurements (VE maps) • Gear 2 √ Provides measurements of both Horse Power and Torque curves • Gear 1 √ Facilitates measurement of Volumetric Efficacy maps for engine tuning √ Provides the opportunity to carry out engine diagnostics while under a load √ Utilizes built in fan for engine & rear tire cooling √ Embedded protection of rear tire

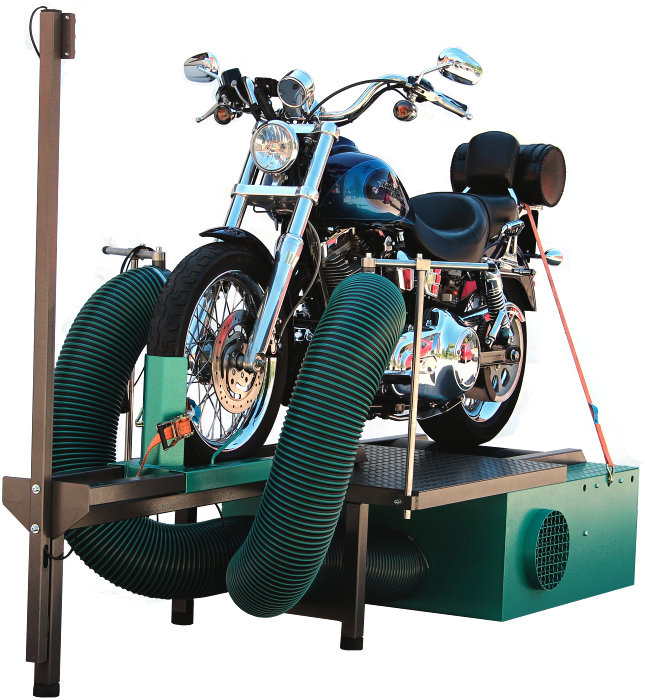

The SPB-2 Motorcycle Dyno is an ideal tool for motorcycle specialists who carry out bike repairs and servicing, ECU diagnostics and especially engine tuning. The SPB-2 gives you more than basic measuring capabilities. It is able to simulate the engine load without the hazards associated with road tests, under both stable and dynamic conditions. Utilizing a large roller with high momentum of inertia & a specially adapted fan assembly which is equivalent to the motorcycle and rider mass and drag caused by air flow. |
|
Weight: 550kg (1213 Lbs.) Dimensions: 2,5m x 0,48m x 1m (99" x 19" x 40”) Roller Diameter: 450mm (18”) Total Momentum of Inertia: 12 kgm² (285 Pound foot²) Fan Power Dissipation: up to 50 kW at 250 km/h (70 HP at 150 MPH) Gear 1 Fan Power Dissipation: up to 80 kW at 180 km/h (80 HP at 100 MPH) - Gear 2 Maximum Roller Velocity: 250 km/h (150 MPH • Gear 1) Maximum Roller Velocity: 160 km/h (100 MPH • Gear 2) PC Interface: RS 232 or USB Power Supply: 12VDC - 0.2A or 230VAC, 110VAC less than 2W Cooling of Rear Tire Temperature Measurement of Rear Tire (IR measurement) |
