BMW MOTORCYCLE DIAGNOSTIC SCAN TOOL

To contact us:

Phone:           (847) 651-3099

Fax:                  (914) 612-8945













MS 5950 | Scanner Functions | Scanner & Cables Page | Scanner Prices Page | Scanner  FAQ Page | Harley Scanner | BMW Scanner | Harley Tuning | sitemap

The MS531-BMW is a PC Based diagnostic tool where data saved in the electronic control systems of the motorcycle can be visualized. Serial diagnostics refers to diagnostics where the PC communicates with a control unit (or units) via the serial communication channel brought out to the motorcycle’s diagnostic connector.



The diagnostic tool for serial diagnostics is basically equipment enabling a person to communicate with the motorcycle’s electronic systems in a form that is easy to understand for a human being. But it is not only a reader. In many cases the diagnostic tool must be used for various configuration functions during maintenance or repairs, especially when replacing certain components.

MS531-4033

BMW Adapter Cable

The set includes:

MS531 Communication Interface

MS531-5009 USB

                   Or

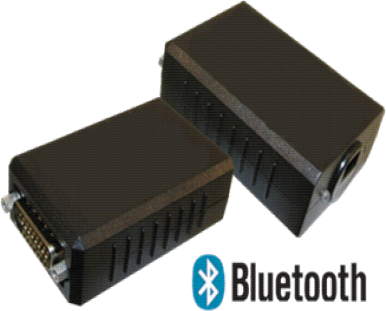

MS531-5008 Bluetooth + USB

MS531 Software

MS531-5021 BMW

MS531 Adapters

MS531-4033 BMW Adapter Cable



PC Requirements:

Windows XP/Vista/7

HDD 30GB

RAM 512 MB (recommended 1 GB or higher)

Free USB Port

MS531-5008 Bluetooth + USB

MS531-5009 USB

MS531-5021

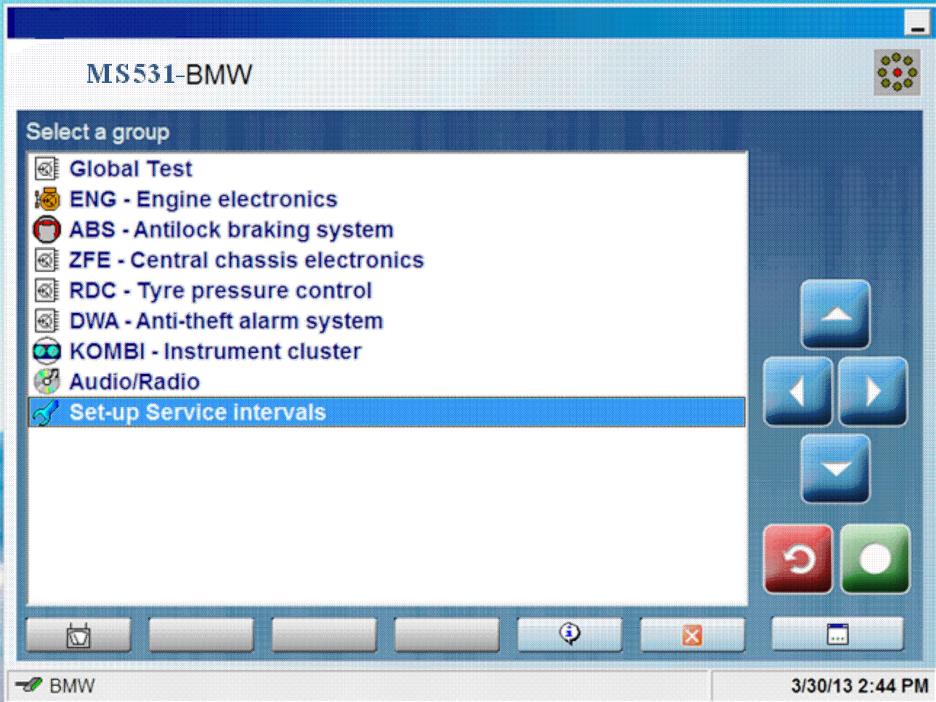

BMW Diagnostic Software

MS531 Communication Interface is CAN Ready. It means that Interface is ready to diagnose new systems equipped by new generation of CAN communication. First Models are introduced in year 2011. Example is BMW K 1600 GT etc.
