Multi-voltage Glow Plug Tester P/N: AMGPT1
TEST GLOW PLUGS ON VARIOUS TYPES OF DIESEL VEHICLES, FROM 1.9V TO 24V! The multi-voltage glow plug tester allows the technician to perform testing on glow plugs, up to 24V. This tool automatically selects the glow plug voltage and replaces several single-voltage testers. Insulated, high-quality leads plug into the top of the unit. The tool is powered by an internal 9V battery with low battery warning. It contains an auto switch-off if the unit is not being used, to conserve battery power. The tool comes with a rubber boot, is oil-resistant and has a soft shrouded cover. |
|
CAN Test Box (CTB) P/N: CTB-1005-3
A BETTER, FASTER WAY TO PERFORM DLC CIRCUIT AND CAN SYSTEM DIAGNOSTICS! Eliminate back-probing the vehicle Data Link Connector. Instantly identify DLC pins 1-16 and identify and monitor DLC pin signals. The CTB features an intuitive inlay panel: LEDs correspond to vehicle DLC pins 1-16. The inlay panel features DLC pin number and description for quick identification. All LEDs are color coded. They light up with DLC pin signal activity, giving an instant indication of functionality. A separate power ‘ON’ LED confirms that the unit is operating. The CTB comes with an 8 foot extension cable with DLC, to pass through to a scan tool, and provide comfortable access to tight workspaces. Observe CTB LEDs and scan data stream at the same time! Make your diagnosis faster! |
|
5-Gas Exhaust Analyzer P/N: AUTO5-2
HAND-HELD UNIT FOR VEHICLE DIAGNOSTICS! Hand-held, battery-operated 5 gas analyzer for cars, trucks, and motorcycles (and all vehicles using internal combustion gas powered engines). Performs pre-test for emissions and helps diagnose problems. Fast, easy-to-use interface; saves time and ensures accurate diagnosis. Use the available PC interface or optional infrared printer to show the customer before & after results and justify charges for testing. |
|

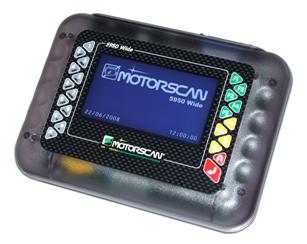

Motorcycle / ATV Diagnostic Scan Tool P/N: MS5950
THE ESSENTIAL DIAGNOSTIC TOOL TO DIAGNOSE, FIX, AND ADJUST BIKES AND ATVs. This tool covers virtually all major manufacturers’ diagnostic functions. It helps the technician diagnose problems and make repairs faster. Many common procedures are in the tool (injectors, ignition, coils, fuel pump, etc.). The technician can perform factory service procedures such as re-setting service lights, encoding keys, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (CO Trimmer), adjusting the throttle valve position sensor (TPS), re-setting autoadaptive parameters, and making idling adjustments. The tool displays ECU data, reads stored faults (history) or live data (RPM, battery voltage, throttle angle). Update the tool via “Smart Card” technology. Features: reads and clears fault codes; makes adjustments and follows factory procedures; displays ECU data, real time, and runs diagnostics; key programming on some bikes, such as Harley-Davidson and Honda; updates available annually. Note: not all features available on all manufacturers, models, or model years. OEM-style connectors sold separately. |
|
Data processor/logger P/N: ADPL11
INCLUDES OEM-SPECIFIC FAULT CODES FOR IDENTIFYING INTERMITTENT FAULTS! Code reader and data logger in one device. Compact device plugs into OBDII port. Reads, records, and processes comprehensive list of fault codes and types, including manufacturer-specific. Computer software (included) allows user to analyze data in various formats and identify those faults which are hard to find when a vehicle is stationery in the workshop. |
|
Heavy Duty Truck Scan Tool P/N: AXTR11
The AXTR11 combines excellent heavy duty truck coverage with some car and light truck coverage. In addition to J2534, the AXTR11 supports CAN applications, J1708, J1939, RP1210a, RP1210b fleet solutions, plus many other standard and customized products.
As well as the excellent heavy duty truck coverage, the AXTR11 combines some car and light truck coverage. In addition to J2534, the AXTR11 supports CAN applications, J1708, J1939, RP1210a, RP1210b fleet solutions, plus many other standard and customized products. The VCI (vehicle communications interface) supports J2534 re-flashing. |
|
VW/Audi Service Light Reset Tool Part Number: AVAGSLR12
The VW/Audi (VAG) Service Light Reset (SLR) tool re-sets service lights on Volkswagen and Audi vehicles, including the latest CAN vehicles with Conditional Based Servicing (CBS). Many VW and Audi vehicles feature the ability to adapt the oil change interval to driving conditions, with Standard and Long Life oil change settings. This reset tool has been developed with “Long Life Oil” service interval functionality. In addition to service light reset, the tool extinguishes the airbag (SRS) warning lamp across the complete VW/Audi range of vehicles.
Features: · Resets service lights on VW and Audi vehicles, up to Model Year 2012 · Used with vehicles with Long Life / Standard Life servicing functionality; allows the technician to switch from Standard Life to Long Life oil change settings, and back · Performs Airbag warning light reset function · Compatible with latest CAN vehicles |
|
BMW Service Tool Part Number: ABMWSLR12
OEM-level service reset tool for late-model BMW vehicles with “condition-based service” functions. View current conditions and reset each item once service has been performed or items have been replaced. Performs all critical functions associated with service!
Reset service indicators for: Engine Oil Brake Fluid Front and Rear Brake Pads Spark Plugs Interior Air, Micro-Filter, and Diesel Particulate Filters Vehicle Check and Vehicle Inspection Counters |
|
Multi-Brand Service Tool P/N: AMBST12
This new multi-brand service re-set tool works on most vehicles, even such exclusive brands as Porsche, Ferrari, Lotus, Maserati, Maybach, and Lamborghini! This essential service tool includes the vast majority of applications required for re-setting vehicle systems after general repair and maintenance or collision repair, on even the newest of vehicles!
Brands: Audi, BMW, Cadillac, Chevrolet, Chrysler, Daewoo, Dodge, Ferrari, Fiat, Ford, GMC, Honda, Jeep, Kia, Lamborghini, Land Rover, Lexus, Lotus, Maserati, Maybach, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Pontiac, Porsche, Rolls Royce, Saab, Smart, Subaru, Suzuki, Toyota, Volvo
Partial list of included functions:
|
